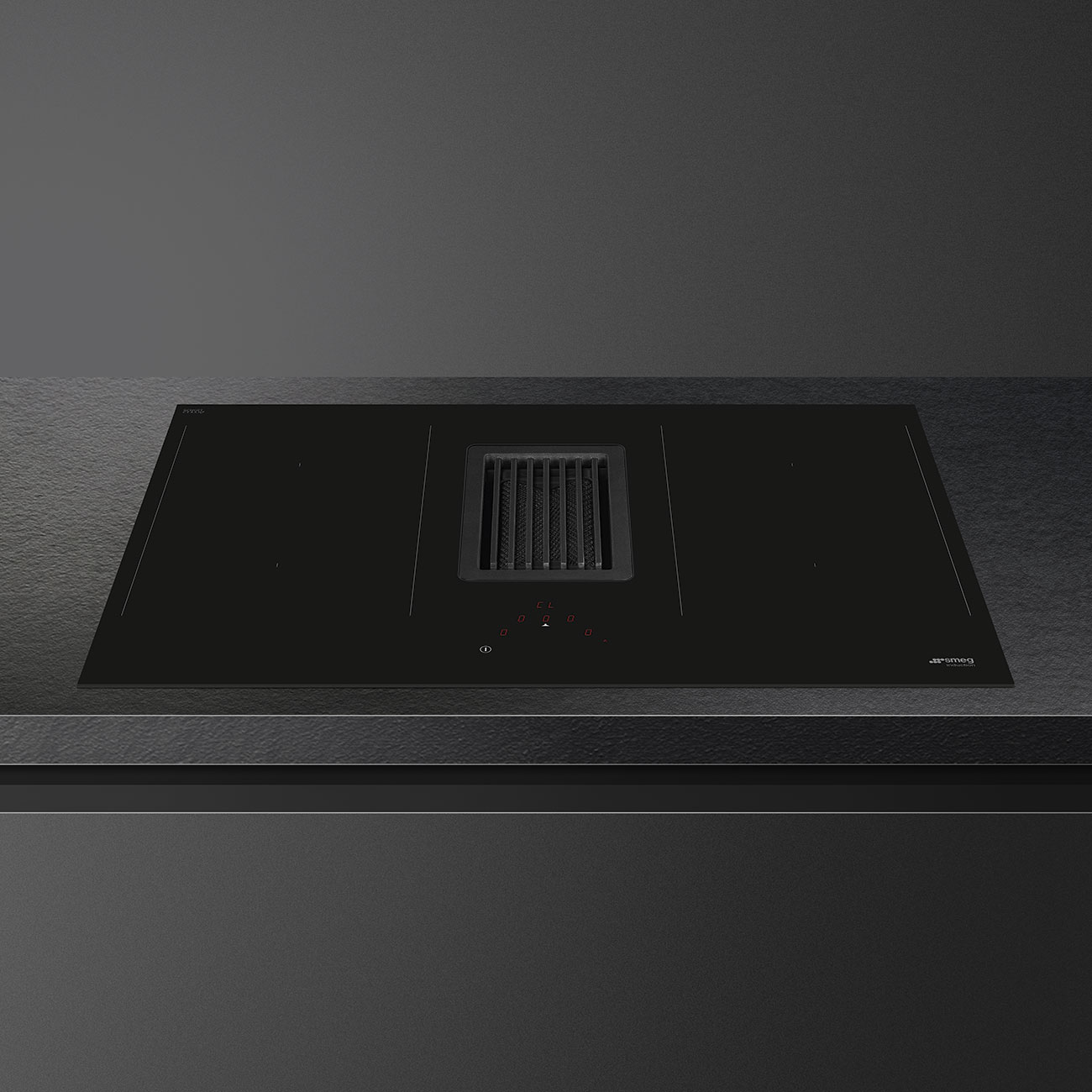

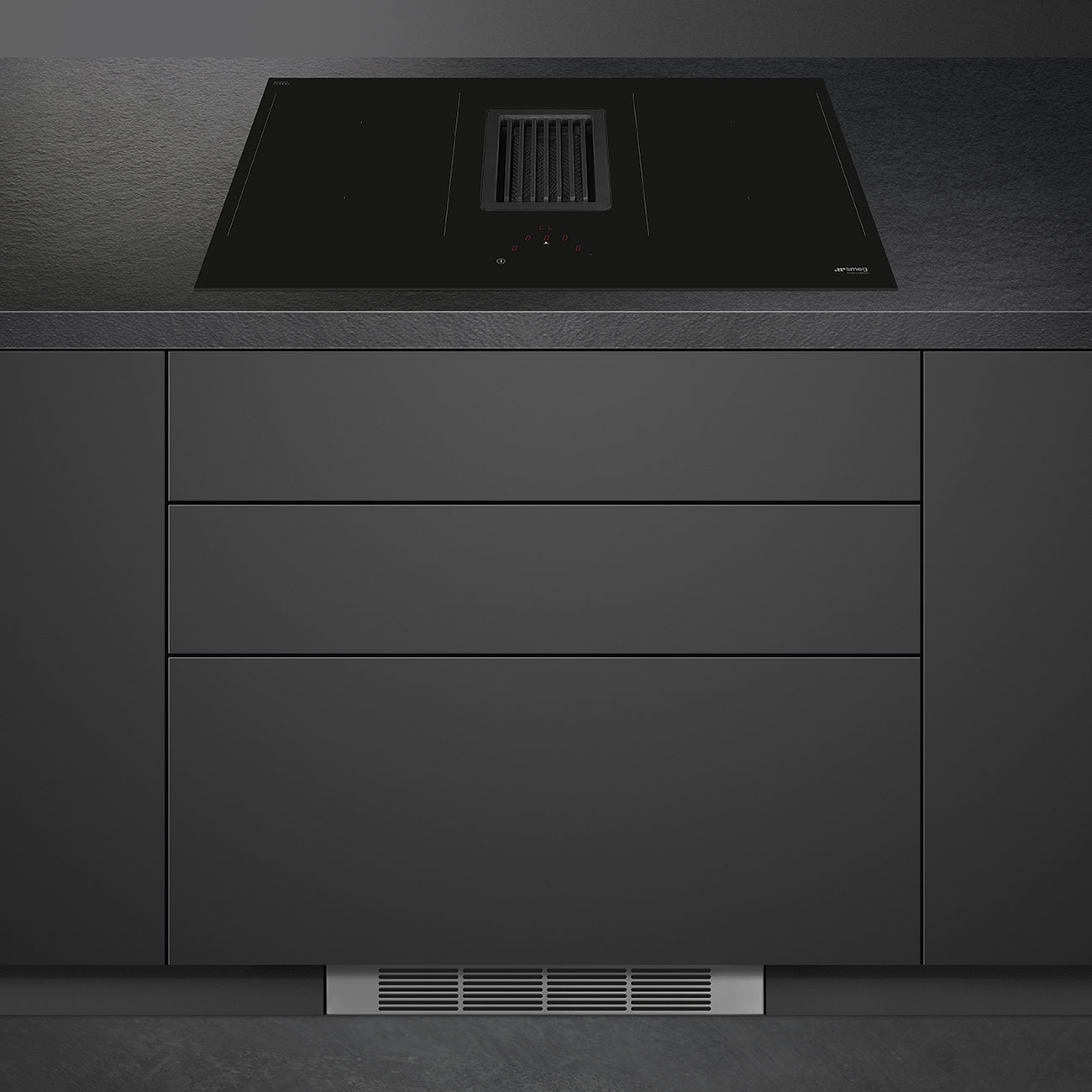

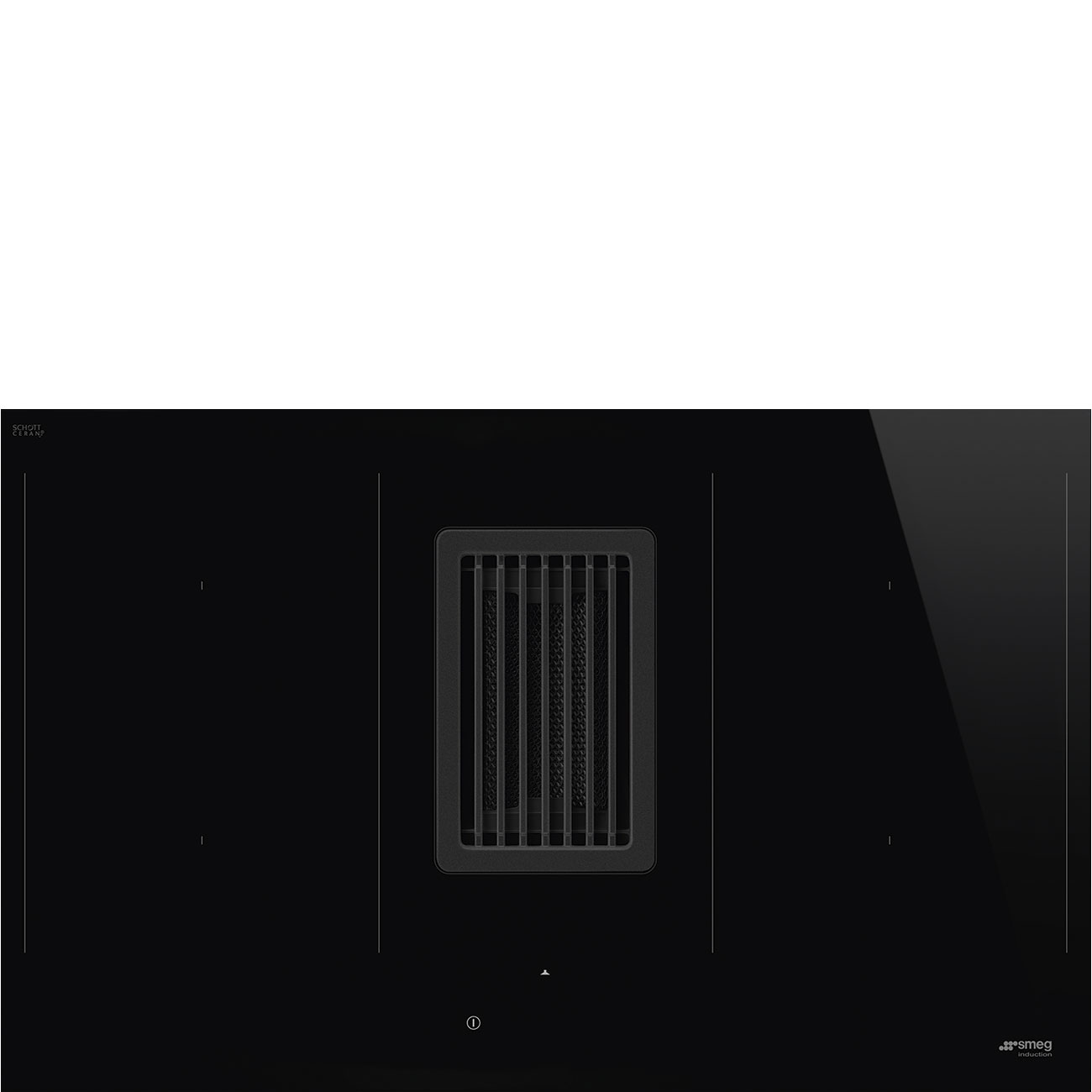

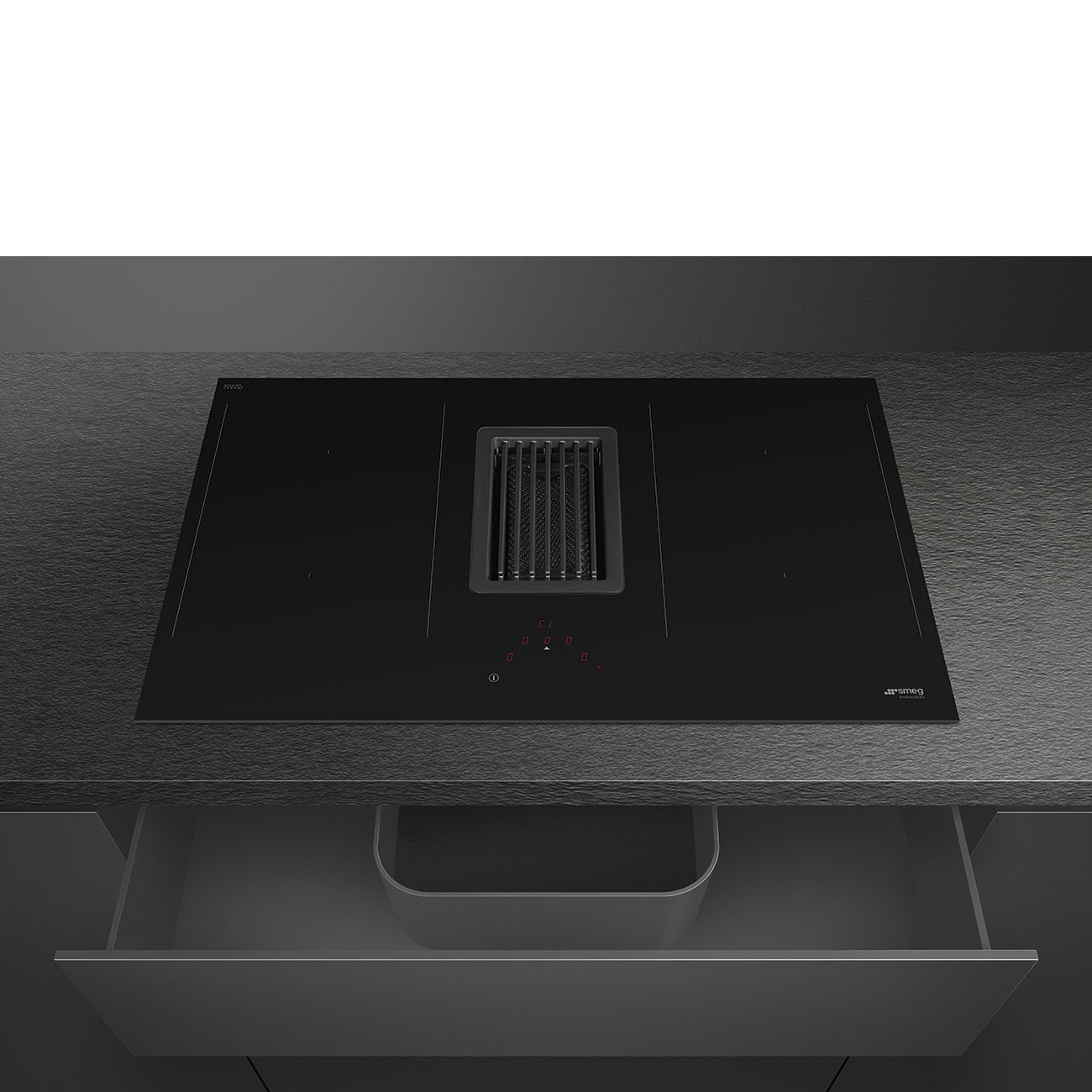

Smeg Universale Induction Hob Black HOBD482D

TECHNICAL FEATURES

Automatic setting according to pan dimension: Yes

Permanent Automatic Pot Detection with an indication of the relative control: Yes

pan detection: Yes

Automatic switch off when overflow: Yes

Residual heat indicator: Yes

Protection against accidental start up: Yes

PERFORMANCE / ENERGY LABEL

Annual Efficiency Consumption (AEChood): 29 kWh/a

2nd zone energy consumption: 192.0 Wh/Kg

ELECTRICAL CONNECTION

Electrical connection rating (W): 7620 W

Voltage (V): 220-240 V

Voltage 2 (V): 380-415 V

Frequency (Hz): 50/60 Hz

Type of electric cable: Universal

Power supply cable length: 120 cm

CONTROLS (HOOD)

Hood control setting: Touch Capacitive

Led colour: Rosso

Display: Yes

PROGRAMS / FUNCTIONS (HOOD)

No. of speeds: 8

Intensive speed: 2

Other functions: AUTOVENT

Hood time setting: Delay

Other options: Kit for Recirculation and Extraction included

Auto-Vent: Yes

TECHNICAL FEATURES (HOOD)

Free outlet maximum capacity: 750 m³/h

Motor power: 220 W

No. of filters: 1

Anti-grease filters: Inox

Charcoal filters included: YES, regenerable

Filter replacement indicator: Yes

SPEED 1

Extraction rate IEC 61591: 245 m³/h

Noise level IEC 60704-2-13: 51 dB(A)

Power: 35 W

SPEED 2

Extraction rate IEC 61591: 285 m³/h

Noise level IEC 60704-2-13: 55 dB(A)

Power: 45 W

SPEED 3

Extraction rate IEC 61591: 350 m³/h

Noise level IEC 60704-2-13: 57 dB(A)

Power: 65 W

SPEED 4

Extraction rate IEC 61591: 380 m³/h

Noise level IEC 60704-2-13: 59 dB(A)

Power: 75 W

SPEED 5

Extraction rate IEC 61591: 410 m³/h

Noise level IEC 60704-2-13: 62 dB(A)

Pressure: 535 Pa

Power: 85 W

SPEED 6

Extraction rate IEC 61591: 445 m³/h

Noise level IEC 60704-2-13: 63 dB(A)

Pressure: 540 Pa

Power: 105 W

SPEED 7

Extraction rate IEC 61591: 475 m³/h

Noise level IEC 60704-2-13: 64 dB(A)

Pressure: 545 Pa

Power: 115 W

SPEED 8

Extraction rate IEC 61591: 505 m³/h

Noise level IEC 60704-2-13: 65 dB(A)

Pressure: 550 Pa

Power: 130 W

INTENSIVE SPEED

Extraction rate (IEC 61591): 550 m³/h

Noise level IEC 60704-2-13: 66 dB(A)

Power: 140 W

INTENSIVE SPEED 2

Extraction rate IEC 61591: 700 m³/h

Noise level IEC 60704-2-13: 72 dB(A)

Pressure: 560 Pa

Power: 220 W

PERFORMANCE / ENERGY LABEL (HOOD)

Energy efficicency class ( EEC): A++

Fluid Dynamic Efficiency class (FDEC): A

Grease Filtering Efficiency Class (GFEC): B

Lighting Efficiency Class (LEC): NA

Fluid Dynamic Efficiency (FDE): 37.60

Lighting Efficiency (LE): 0.0 lux/W

Grease Filtering Efficiency (GFE): 85.1 %

Air flow at minumum speed (Qmin): 245 m³/h

Airflow at maximum speed (Qmax): 505 m³/h

Airflow at boost speed (Qboost): 700 m³/h

Airbourne acoustical A-weighted sound Power Emission at the minimum speed (SPEmin): 51 dB(A)

Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 65 dB(A)

Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 72 dB(A)

Power Consumption in Off mode (Po): 0.49 W

Time increase factor (F): 0.6

Energy Efficiency Index: 32.8

Measured air flow rate at best efficiency point (Qbep): 328 m³/h

Measured air pressure at best efficiency point (Pbep): 540 Pa

Measured electric power input at best efficiency point (Wbep): 131 W

The sound power level at the highest setting (Lwa): 65 dB(A)

LOGISTIC INFORMATION

Dimensions of the product (mm): 230x830x520

Depth: 520 mm

Width: 830 mm

Product Height: 230 mm

Net weight (kg): 23.000 kg
